200A single-pin DC connector

LPEVH6-200A

A different angle, easier routing.

View technical information Close-up view

Rendered from a manufacturer-provided model. Electrical and verification parameters follow the conditions noted on this page. 14

LPEVH6-200A · Design intent

Right-angle and self-rotating interfaces help heavy cable bundles find a smoother path in limited space.

For energy storage and high-current DC connections, the LPEVH6-200A combines an angled cable exit with a rotatable mating end. Adjust its orientation during assembly to avoid enclosure interference and reduce extra cable routed for detours.

200 ASingle-pin DC connection

Right-angleLeave room for side cable exit

RotatableAdjust the opening orientation during assembly

200A, single-pin DC and self-spinning interface are company-provided information. Rotation angle, permitted rotation state, operating voltage and wire gauge are to be verified against official model documentation. 11

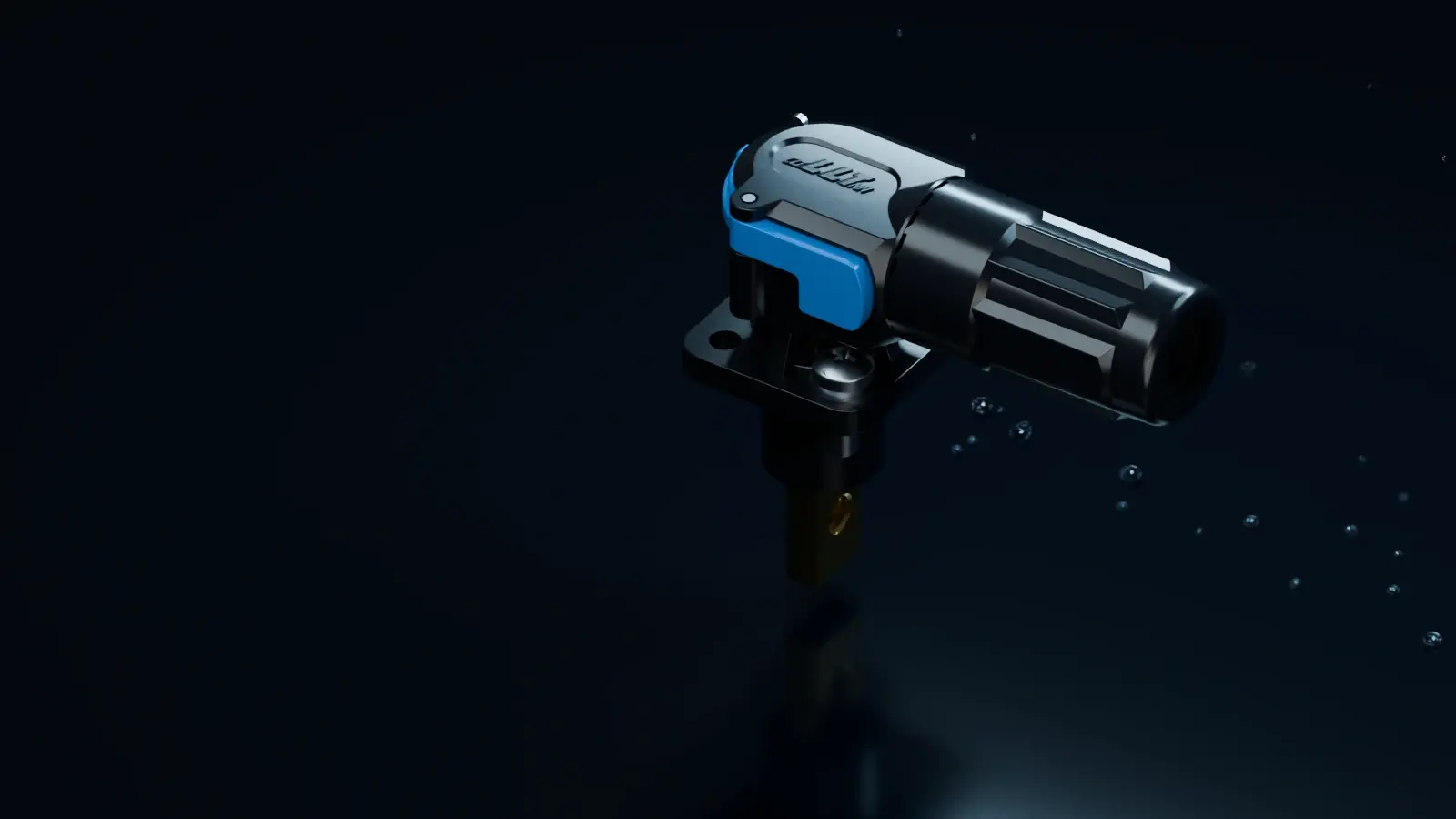

LPEVH6-200A original product waterproof theme display; see notes for performance applicability

LLT · Environmental protection

Water stays out.Connected inside.

From the mating interface and housing to the cable exit, check sealing point by point. Confirm the applicable solution per the protection rating, installation state and actual conditions of the specific model.

Confirm per specificationProtection rating and operating state

Protection applies only after correct mating, locking, and cable sealing are complete. The imagery is an environmental illustration, not footage of actual testing. Applicable conditions ↗

TAKE A CLOSER LOOK

Another angle, more room for routing.

Drag to view the appearance; zoom in for details.

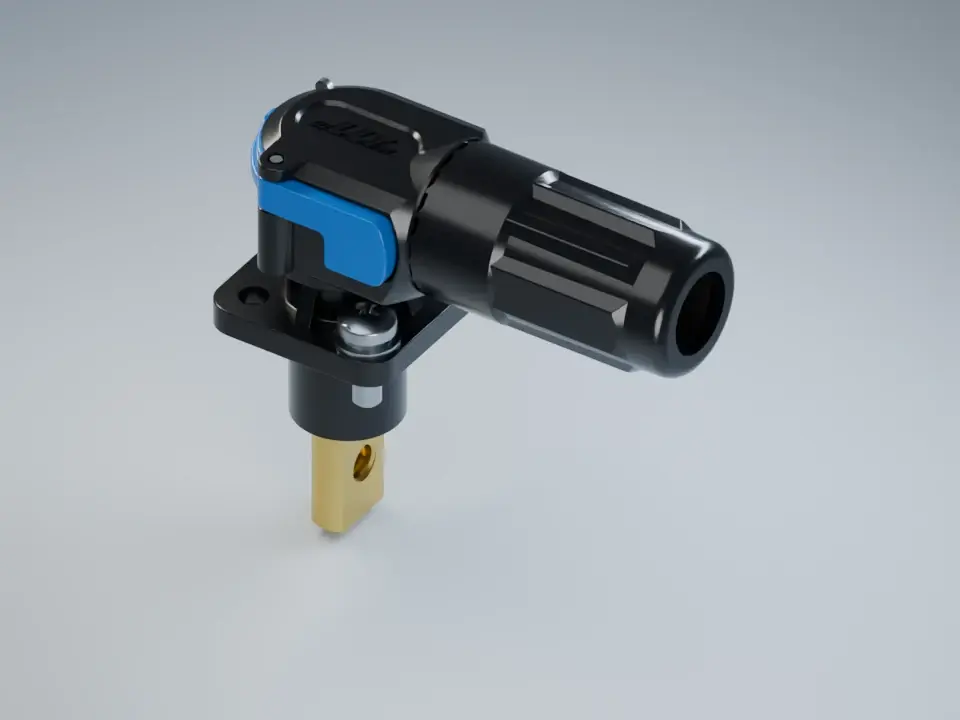

LPEVH6-200A angled single-pin connector, multi-angle views

View01 / 24

Zoom

Original model appearance render. The rotating-view demonstration does not imply that the product has a corresponding working rotation function; engineering conditions follow the technical information on this page.

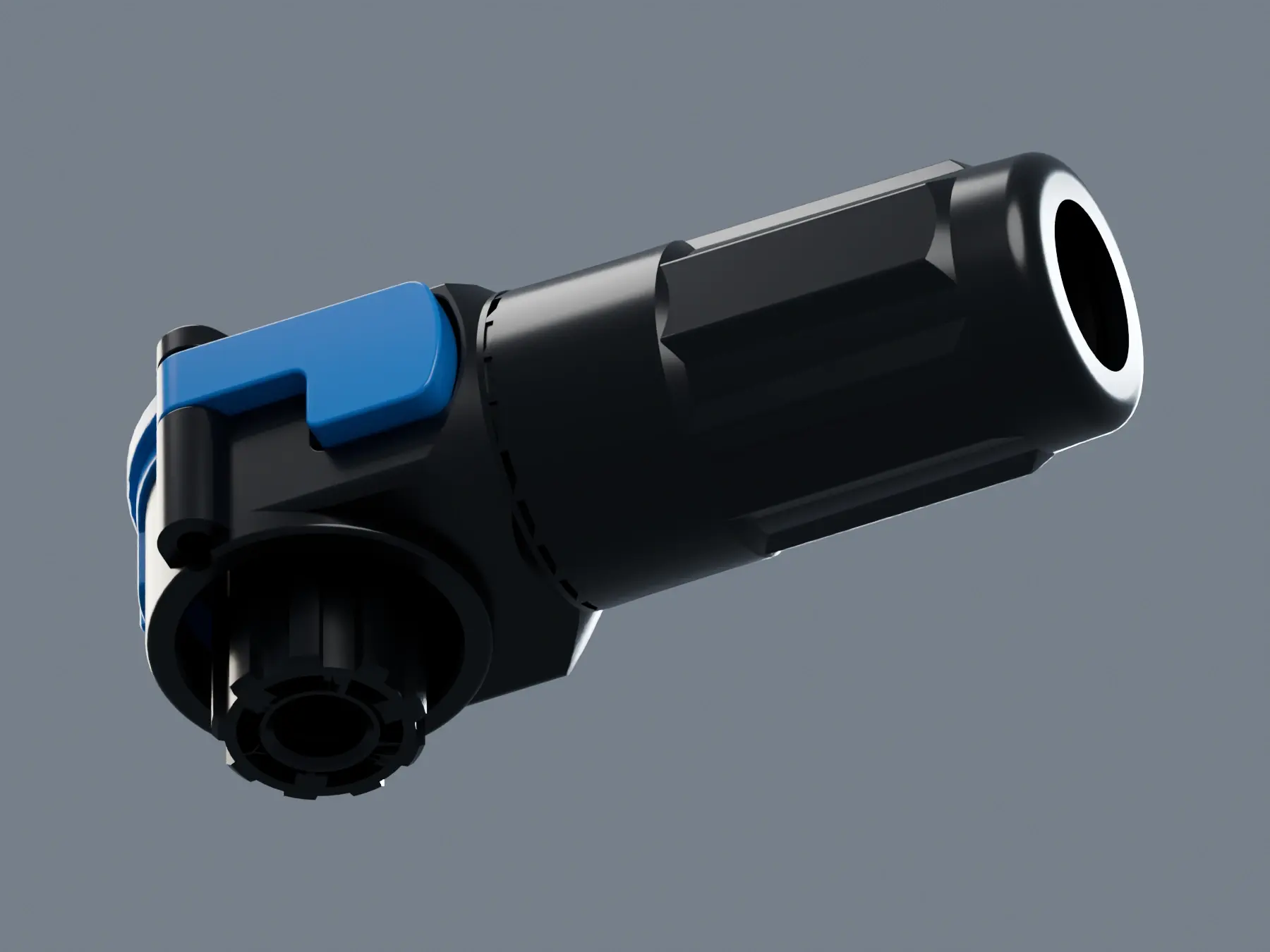

LPEVH6-200A: turning space, left for the cable.

A closer look at the structure

Steering clearance, reserved for the harness.

Right-angle cable exit with a self-rotating port makes it easier for large-cross-section cables to follow the enclosure layout. Adjusting the orientation helps reduce detours and excess slack.

Rotation angle and permissible operating states follow the official structural description; this does not imply live mating or unlimited continuous rotation.

A closer look at the structure

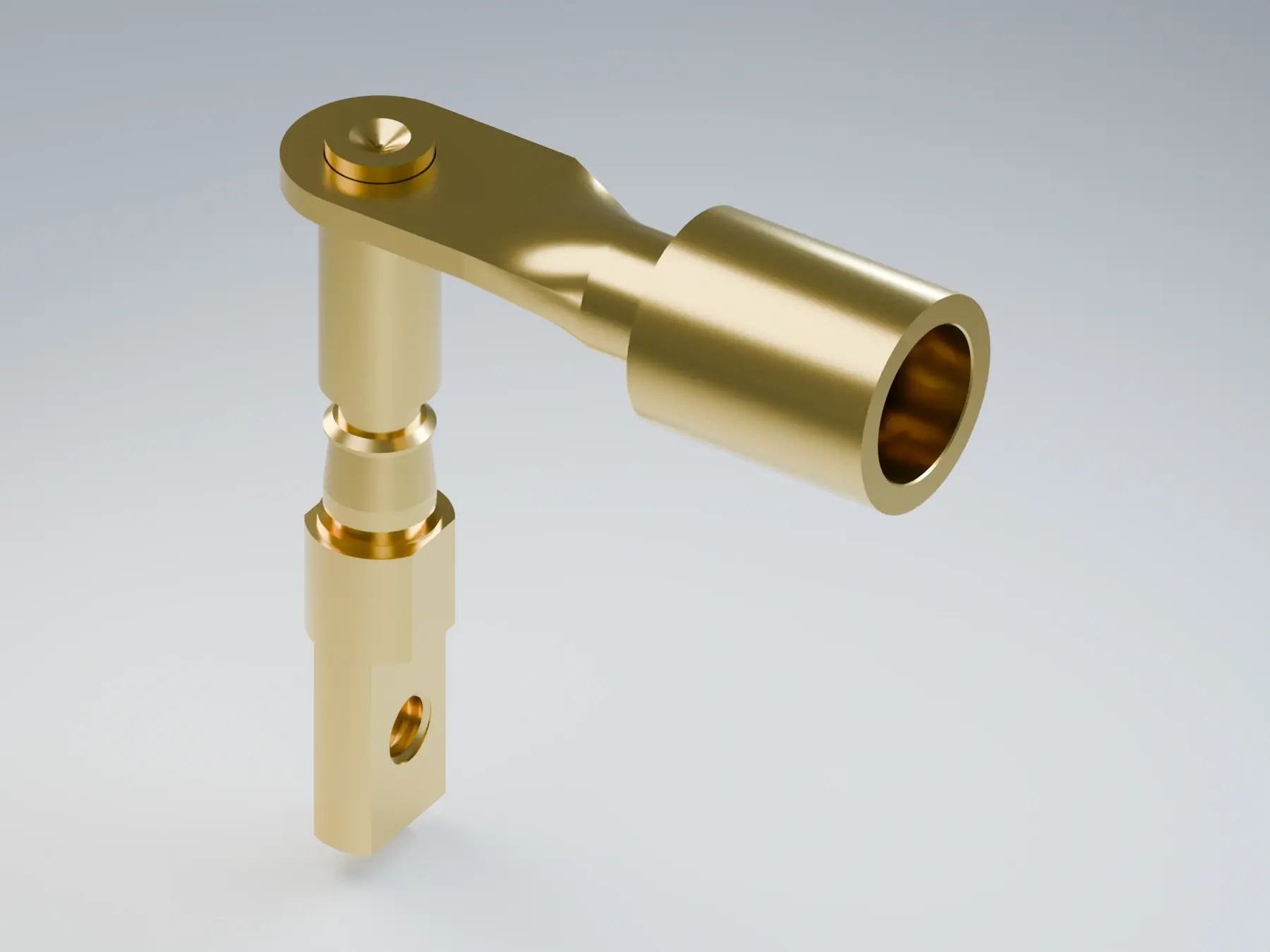

See the path the current takes.

With the housing hidden in place, observe the conductive parts inside the right-angle connector and the cable exit direction. The structure stays in its original position, making the relationship between contact and routing more intuitive.

This image shows the conductive element only and does not show the angled-spring detail. For the company's large angled-spring contact solution, the suggested communication name is "LLT ring-stable contact".

Every mounting, clearly seen.

Another angle.
Understand the structure.

Select mounting and contacts first, then take a closer look at the mating face, wiring back end, and catalog dimensional drawings. The appearance of the same structure can be shared; contact count and pin positions are verified independently.

Mounting methodMating structureContactsStructural appearance

STRUCTURE, IN FOCUS

LPEVH6-200A · LPEVH6-200A connector structure display

Appearance, mating face and mounting dimensions are verified separately, so every fit is traceable.

Original series image for structural reference; mounting, contacts and the complete part number follow the corresponding product documentation.

Select the matching configuration ›

Technical information

Key parameters, with conditions stated clearly.

Rated current: 200 A
Electrical application: Single-pin DC connection
Cable exit form: Right-angle
Mating face structure: Rotatable

Parameters provided by the manufacturer. Rated voltage, ingress protection, wire gauge and rotation range must be confirmed against the official specifications; actual cable length savings depend on the routing path, and no uniform ratio is promised.

Get full specifications View the structure from multiple angles

Back to device

State clearly where it connects.

Start from the connection position in the equipment to reduce selection errors based only on pin count and appearance.

Energy storage cabinet

Verified battery-to-combiner/power-system DC interface

Selection focus: operating voltage, continuous current, touch protection, wire gauge, polarity, and unmating clearanceView connection positions

Compact power equipment

High-current cable outlet in confined spaces

Selection focus: allowable rotation state, bend radius, and harness fasteningView connection positions

Compare again

Adjacent series, each with its own strengths.

120A female-contact flange connector

LP-32

High current and vibration validated in one scenario, designed for the actual working conditions of equipment connections.

About this series ›High-current power connection

M29

Focusing on 2–4-pin power configurations for more targeted connections for motors and power equipment.

About this series ›

Start with your equipment.

Tell us the load, wiring and installation space,
Determine the right connection solution together.

Contact engineer

Specifications for waterproof connectors and aviation plugs apply per the specific model. Configurations that look similar may differ in ratings, pin positions, and mounting structure.Full technical notes。

Rated current and voltage.Rated current is stated per individual contact or designated contact group of the selected configuration; rated voltage is stated per the corresponding insulation structure. Simultaneous energization of multiple contacts, conductor cross section, ambient temperature, and heat dissipation conditions affect temperature rise and allowable current capacity. Selection results are for initial screening only; final selection must be verified against the datasheet and temperature-rise validation under actual operating conditions. Source and applicability Back to content
Contacts and plating.Contact base material and plating are selected per the specific product specification. The phosphor-bronze solid contacts and 2 μin gold plating provided by the company apply only to products marked with that configuration; 2 μin is approximately 0.0508 μm. The gold color in renderings expresses material only and is not used to judge plating thickness, finish or the material of internal spring elements. Source and applicability Back to content
Rotatable cable exit and angled-spring contact.The mouth rotation of the LPEVH6-200A is used to adjust cable routing direction during installation; it does not indicate live rotation or slip-ring functionality. 200 A is the manufacturer's product rating information; applicable wire, temperature rise, and environmental conditions should be checked against the specification sheet. "Ring-stable contact" is a descriptive name for the angled-spring contact structure on this page and does not indicate a registered trademark or equivalence to any other brand's proprietary technology. Source and applicability Back to content
Mounting form and face view.Front-mount panel, rear-mount panel, flange, and in-line mating describe the mounting structure; male and female contacts describe the contact form—the two are selected separately. Face views should indicate both the viewing direction and the locating datum; do not infer mating compatibility from left-right mirroring. Panel thickness, cutout, and locking conditions follow the drawing of the corresponding part number. Source and applicability Back to content
Image and demonstration notes.Product images are rendered from 3D data provided by the company; lighting, backgrounds, water droplets, light effects and particles illustrate the application environment and cannot replace test results. Protected structures are shown in desensitized appearance illustrations; none may be used as a basis for manufacturing, measurement, wiring or mating. For engineering documentation, apply to LLT per project. Source and applicability Back to content
Conditions of use.Installation and maintenance should follow product specifications and equipment safety requirements. Connectors not explicitly rated for live mating should be operated only after power-off. Protection performance depends on seal condition, assembly method, cable fit, and the operating environment; custom designs require corresponding sample validation. Source and applicability Back to content
Dust protection boundary.The dust protection requirements of IP6X apply to the verified sealed state. End faces, sealing rings and locking areas should be kept clean to prevent sand and dust from being trapped and affecting mating and sealing. The dust rating does not mean the connector can be used in explosive dust atmospheres. Source and applicability Back to content
UV resistant."UV resistance of 1000 hours or more" is performance information provided by the company; its applicability should correspond to the material grade, color, product version and the corresponding test records. Accelerated aging duration cannot be directly converted into years of outdoor service life; UV light source, irradiance, temperature-humidity cycling and evaluation items follow the corresponding report. Source and applicability Back to content
Salt spray and corrosion resistance."Salt spray of 480 hours or more" is performance information provided by the company for a specific combination of materials and plating. Results apply only to the corresponding plating thickness, specimen condition, test conditions and acceptance criteria, and cannot be directly converted into service life in coastal environments. Appearance corrosion criteria and electrical performance criteria should be confirmed separately. Source and applicability Back to content
